Partywagon Keyboard PCB Kit

Partywagon Keyboard PCB Kit

$50.00

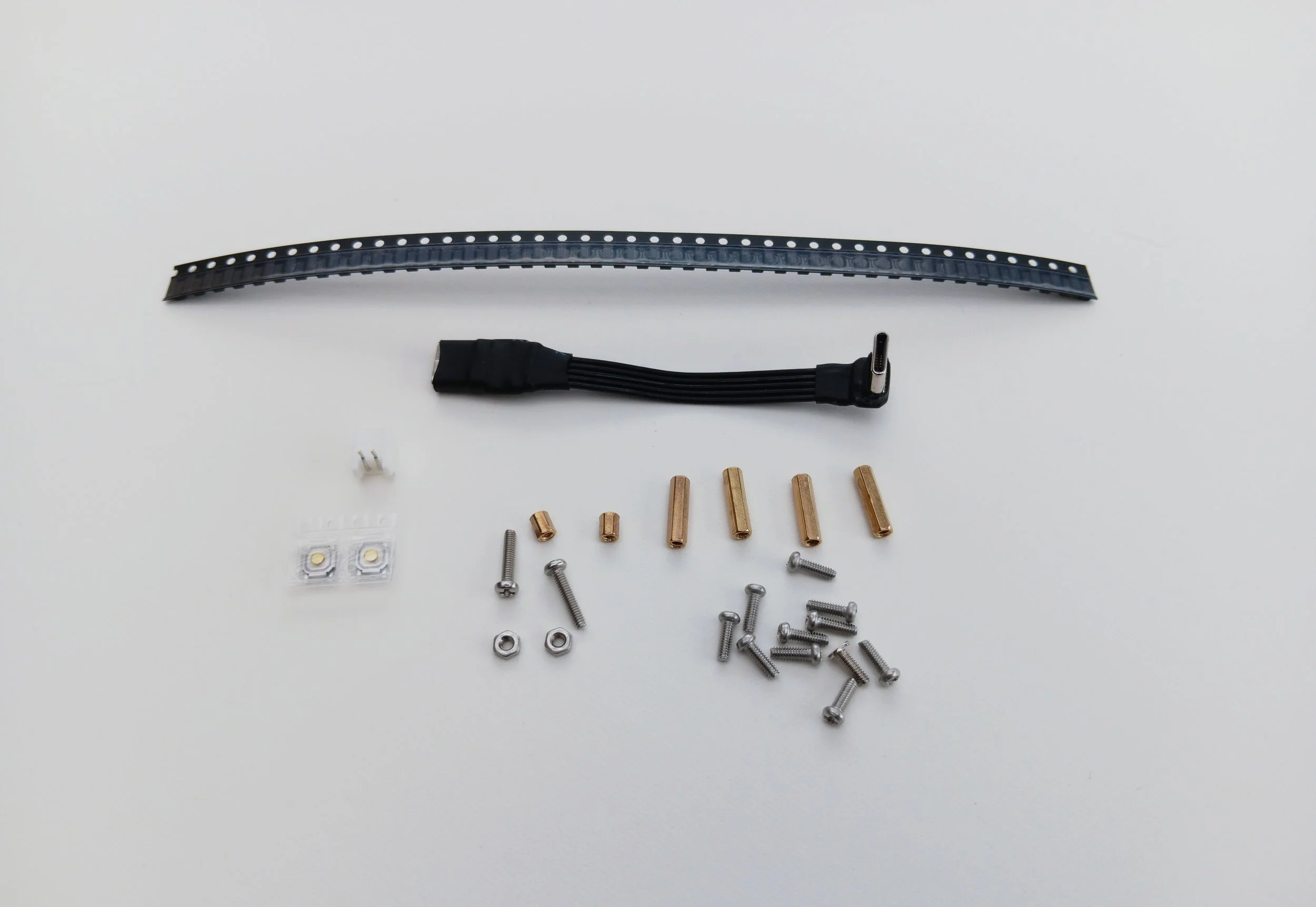

A kit that includes the:

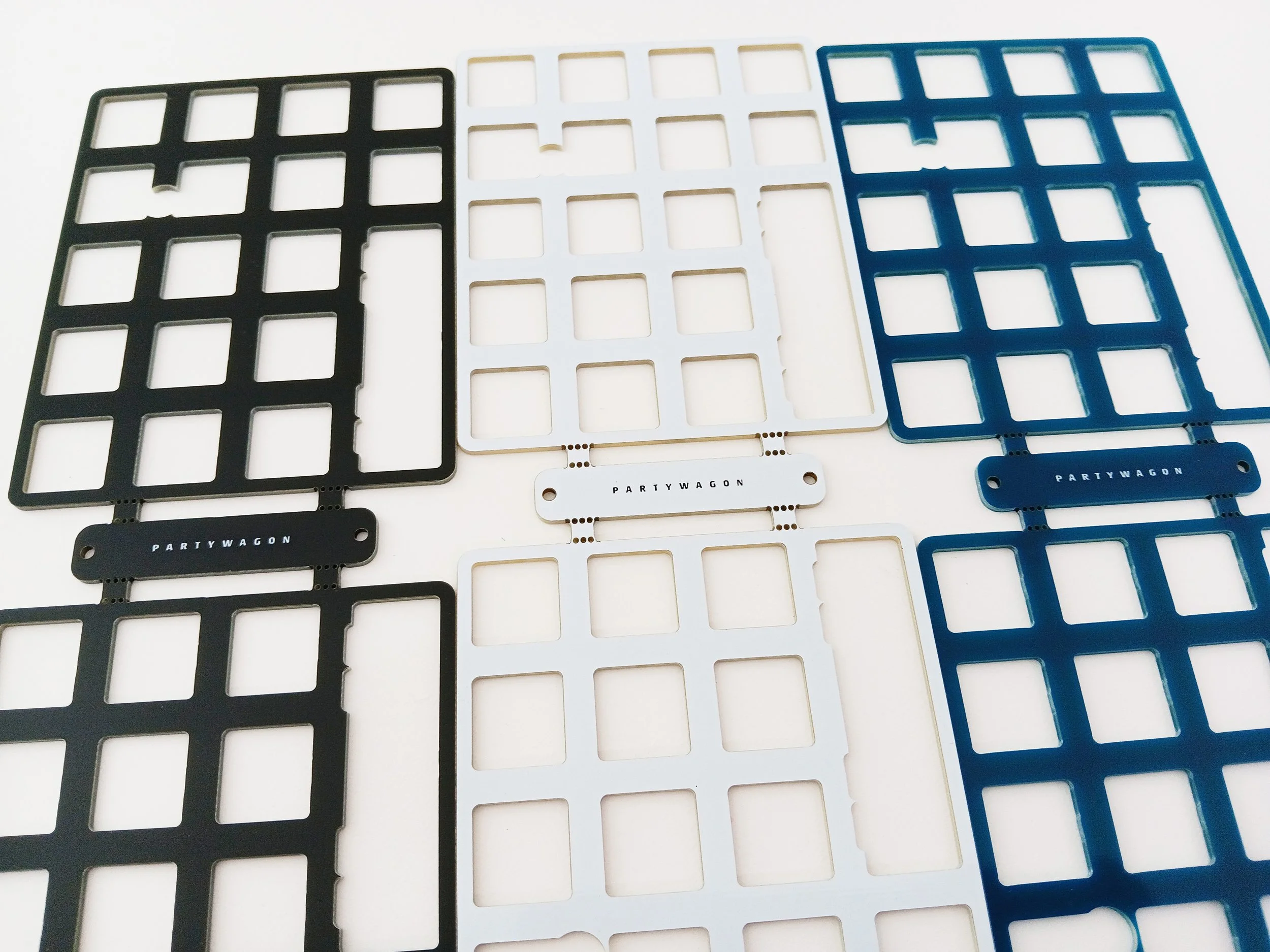

  • PCB

  • 40 smd diodes

  • two tactile smd buttons

  • J1 battery connector.

  • These components require soldering to build the working PCB

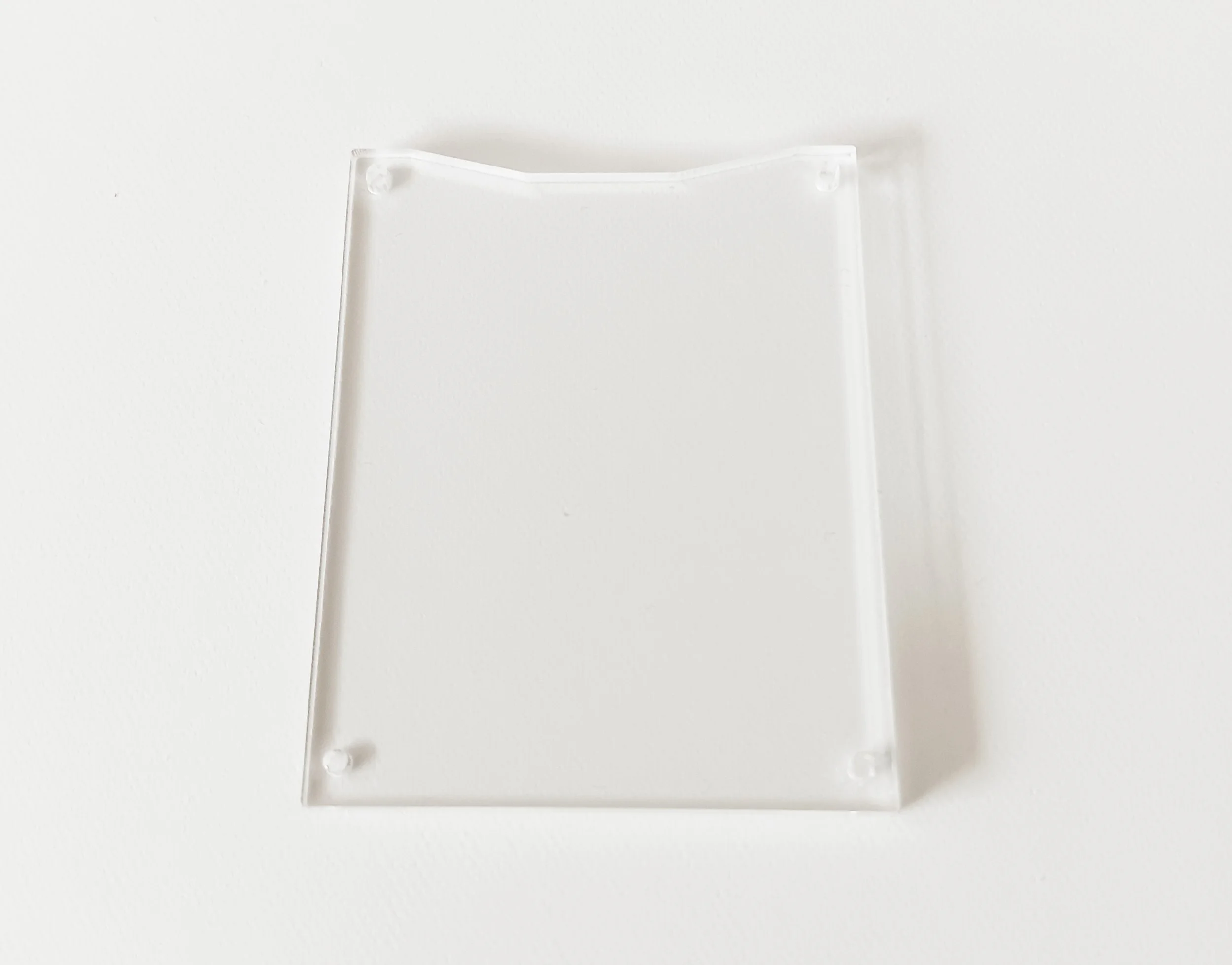

  • Also included are the screws, spacers, clear protective window acrylic and 90 degree USB-C adapter

To complete the keyboard, you will need to add:

  • a minivan/12.75u keyboard case

  • 36 - 40 MX style switches (3 or 5 pin), or ALPS switches

  • keycaps

  • 3u/2u stabilizers (optional)

  • nice!nano and headers (millmaxed/pin headers are optional)

  • nice!view screen and header (optional)

  • a 3.7V 500 mAh (29mm x 36mm x 4.75mm or 420mAh (35mm x 24mm x 5.2mm) or LiPo battery with male connector end (red wire on left and black wire on right when oriented right side up, with connector end north facing)
